Chip Cutting / Surface-Cleaning Disk-Type Blasting Machines
1. Two-in-one blasting machines: single chip-cleaning and grain blowing.
2. Small space required and powerful dust cleaning, making the placement of the machine easier and the working environment cleaner and more comfortable.
3. The design of placing and retrieving of chips by a one-side fixed point. At operation only one man is needed for carrying out the production. Placing or retrieving will not interfere with a simultaneous check on the processing chips and thereby the yield and the pass rate are enhanced.
4. The speed of the main turntable can be micro-adjusted for the speed of the turntable according to the requirements of the production.
5. The small turntable is to fix workpieces with a special vacuum sucking device. Air pressure and airflow are powerful and stable, which insures the safety in the process of workpiece processing.
6. The filter for multi-filtering can screen out trifles and miscellaneous articles, reducing the rate of broken chips to the minimum.
7. The blasting can effectively lead sands to crash the chip, enabling all grains to produce an integral true circle and a beautiful slant surface.
8. The stable cyclone separator can effectively separate dust and make the blasting more smooth and, with the design of an effective sand recycle, the production of noise can be reduced considerably. Thus, the working environment can be made quieter and more comfortable.
9. With the compact design, the operator can easily operate smoothly without sophisticated skills and blasting machines can be constantly kept at a highly effective production.

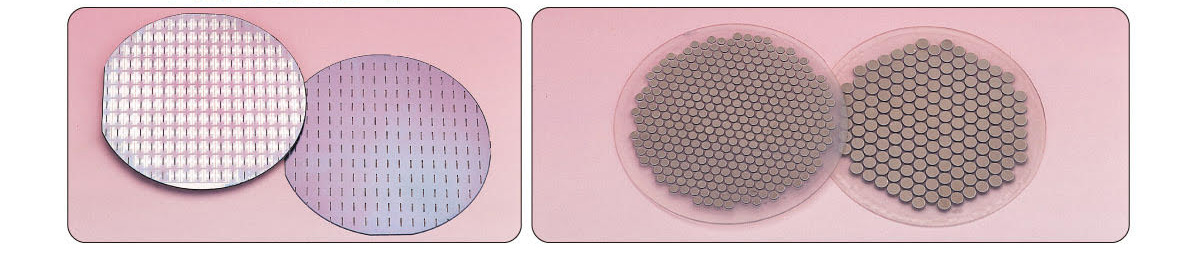

Introduction of new products- Blasting-proof protective
films (specific for silicon chips blasting, cut into small circular and sheet
grains)
Application of
blasting-proof protective films. The main feature is that at blasting the
crack between film boards will not have any remnant gel. At the beginning
of blasting, the chip is blasted, so during the processing the blasting
and carving can be performed, saving energy and processing time. The
blasting time it requires is reduced by about 40% than the wax coating.
(Note: Because with the wax coating, when the workpiece is pasted, wax
will be left in the space of the protective iron pieces, the thickness
reaching up to 0.4mm, at blasting time should be spent on reducing
blasting time and after the wax is blasted are the blasting and carving
started. Besides, the sand is very easily mixed in due to remnant wax
resulting in unsmooth blasting, so a lot of processing time is
unconsciously wasted.) The application of the new method, however, not
only solves the high rate of broken chips resulting from the old
protective iron pieces, which, after blasting, easily produce heat and
thereby is deformed; but also, with the advantages of its powerful
blasting protection, secure pasting, and no deformation at crash, greatly
enhances the successful rate of yield. In addition, this product can be
molded and mass-produced in Taiwan and thereby can meet the demands of
small-quantity-and-many-pattern production for Taiwanese manufacturers.
